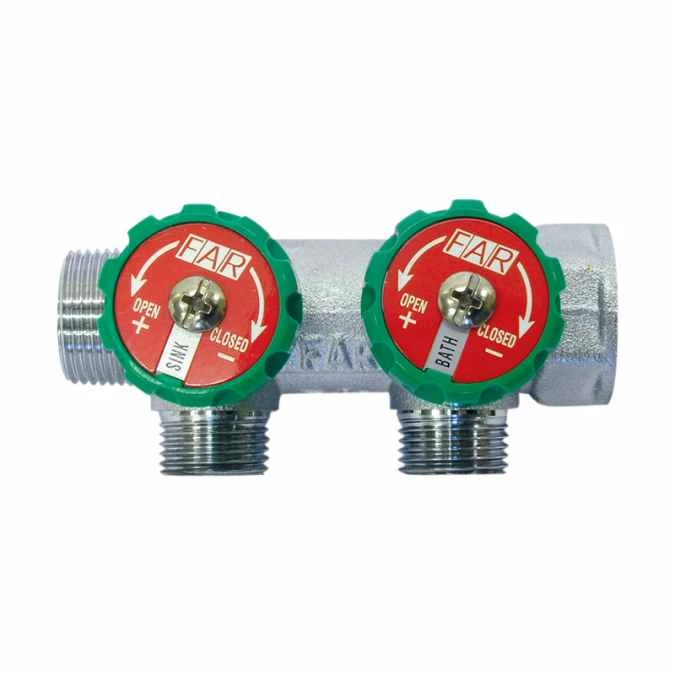

Abacus Easi-Plan 2 Way Manifold

This Abacus Easi-Plan 2-Way Manifold is a way of separating the water feeds to each room or even device.

Please note that this is restricted to installations using mains pressure or combination boiler water supplies.

• Product Code: EPWD-05-0505
• Water Distribution Manifold
• 2-Way
• Multi-turn valves for correctly balancing all outlets
• EPDM rubber valve seats
• Centreline between ports is 45mm
• The nominal pressure is 16bar
• The maximum working temperature is 95decC.

The chrome-plated modular supply manifolds are equipped with built-in valves and flat-faced connections and are suitable
for use in water distribution systems and domestic services. Water flow through the manifold meets the EPDM valve seat
frontally in order to avoid any misfunction due to long dry periods and strong pressure surges. Valves located on each
outlet make it possible to isolate any connected terminal directly from the manifold during installation, maintenance, or
replacement operations. Easy operation is ensured by front-mounted knobs to control the valves. Use the silk-screen
printed discs provided with the manifold to identify the connected terminals. A disc with “open/close” wording and a disc
with descriptions are both supplied.

This Easi-Plan 2 Way Manifold is a way of separating the water feeds to each room or even device.

Please note that this is restricted to installations using mains pressure or combination boiler water supplies.

• Width: 90mm
• Depth: 60mm
• Product Code: EPWD-05-0505
