ABACUS Level Access 550 Radius Quadrant Wet Room Shower Tray – 900 x 900mm | Premium Wetroom Solution

Abacus Level Access 550 Radius Quadrant Wet Room Shower Tray – 900 x 900mm

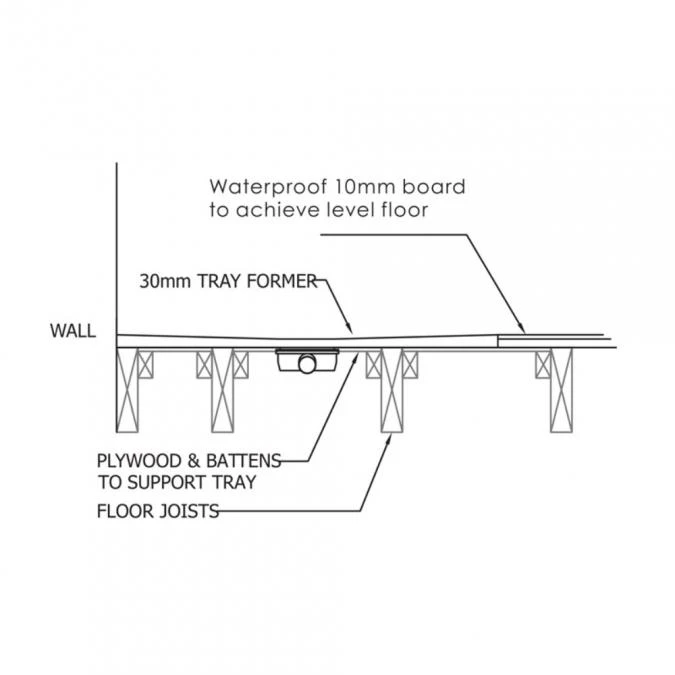

The shower tray is 30mm high and is typically recessed into timber floors. The drain must be able to sit between the joists or in a channel on a screeded floor. The waterproof boards are 10mm high.

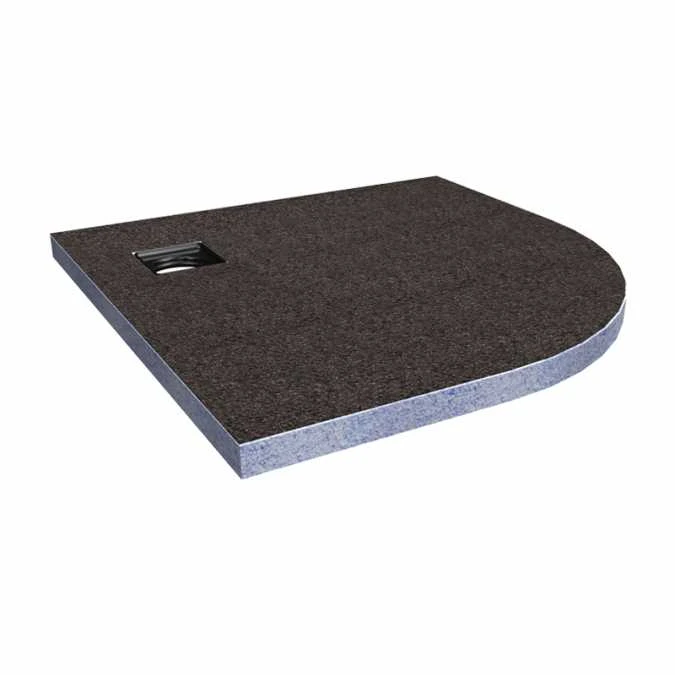

Constructed from a high quality structural hard foam, the Level Access Wet Room Shower Floor is humidity resistant and has a special mortar coating with a glassfibre reinforcement. It is light, strong and an ideal substrate to tile on to.

NB: We recommend the use of 10mm Elements board on the rest of the floor prior to tiling. This is for waterproofing stability of tiles and insulation.

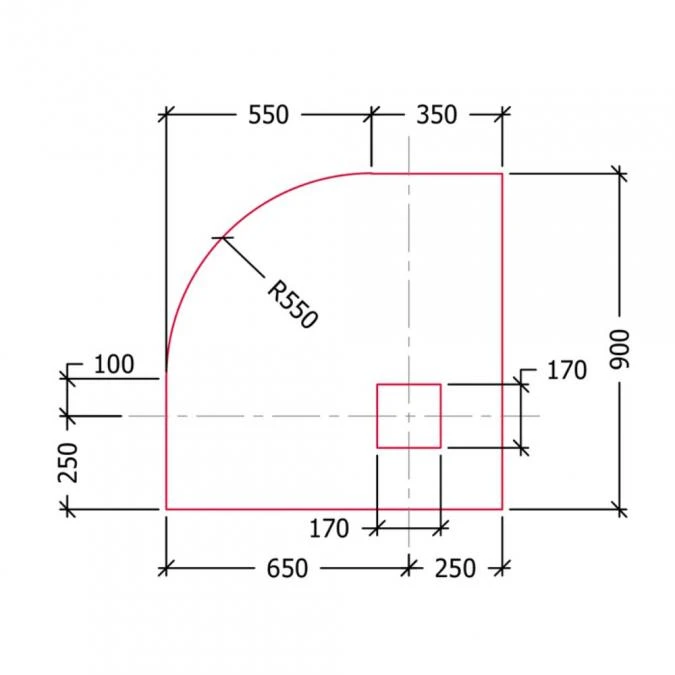

• Shower Tray – 900 x 900 x 30mm
• 550mm Radius
• Square Centre Drain
• Tray EMST-20-1510,

Note: Suitable for both timber and screeded floors. Requires an Installation Kit and Waste/Trap

Installation Kit (Required Option)

• Flexible Waterproof Tape Adhesive
• Wood Floor Primer

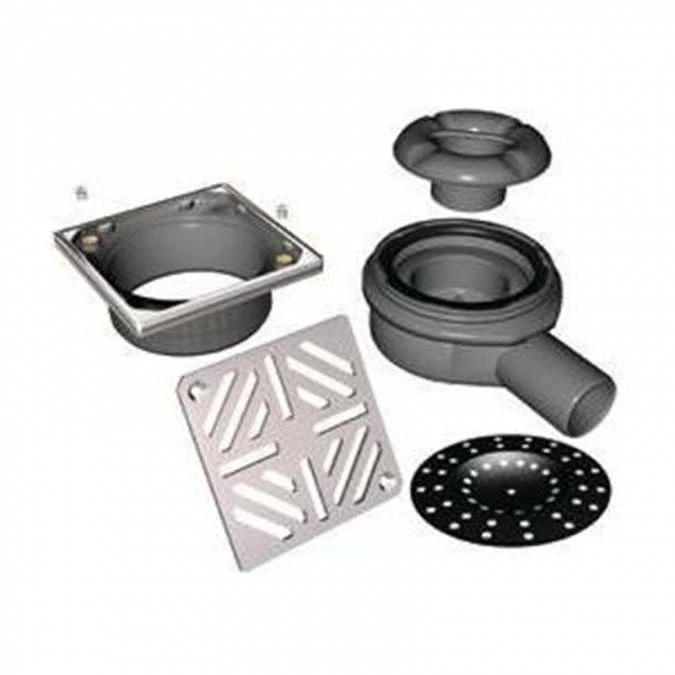

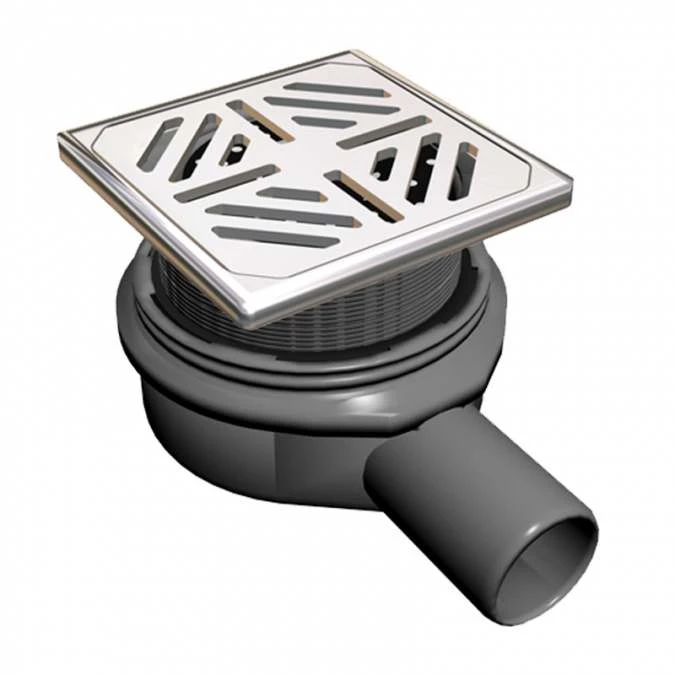

• Horizontal Shower Waste
• Board Fixing Adhesive
• Waterproof Joint Sealing Tape
• Waterproof Internal Corners
• 35mm Fixing Washers & Screws
• Adhesive Trowel
• Protective Glove

For hints and tips on installation please see the PDF and video guides using the links below;

Installation Guide
