Abacus Raised Linear Waste Wetroom Kit 3L 1850 x 900mm
Free Next Working Day Delivery
Abacus Elements Concept Raised Tray with Linear Waste Kits 3L & 6L (40/50mm height x 1850 length)
Contents & Fitting Instructions
The Elements concepts 3 & 6 are designed for two principals where a distinctive shower trays i.e. 50mm off the ground is required.
Some customers prefer a small step between the shower area and the rest of the bathroom floor.
Secondly if a customer wishes to achive a level floor system on a screeded floor this can be achived by sitting the 40mm tray within the screed. You must sufficent clearance in the floor to achive this
Consisting of:

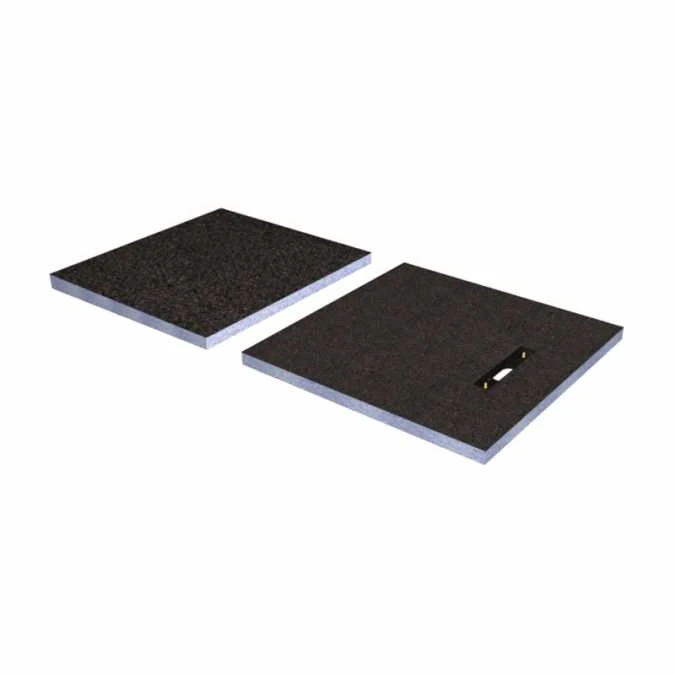

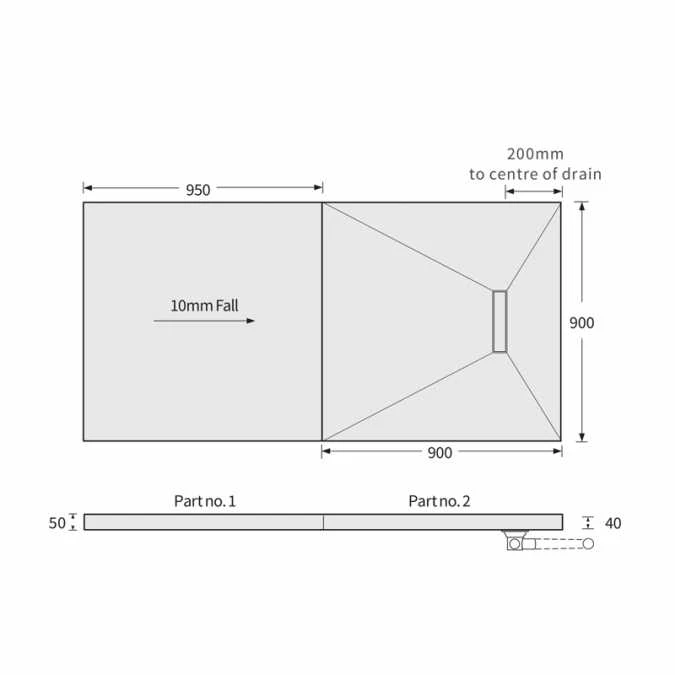

- 1 x 1850 x 900 x 50/40mm Shower Base & Linear Stainless Steel Waste
- 1 x Complete Tray Installation & Sealing Kit
The Installation & Drainage kit Includes
- Pro-seal premix 0.5L
- Wood Floor Sealer
- Horizontal Shower Waste
- Fix-KST 5kg bag
- Fix-MD 310ml
- 5M Waterproof tape
- 2 Waterproof Internal Corners
- Tile Guide
- Paint Brush
- Protective Gloves
- Notched Trowel
Constructed from a high quality structural hard foam, the concept 1 Shower Tray is humidity resistant and has a special mortar coating with a glassfibre reinforcement. It is light, strong and an ideal substrate to tile on to.
NB:
1) The trays can be reduced in length & width by cutting with a hand saw, however we do not recommend cutting more than 80mm of each side of the tray when reducing the width
2) Tray lengths can be extended by purchasing additional element boards.
