Elements Raised Tray Wetroom Kit 3 1850 x 900 x 40/50mm
Abacus Elements Concept Raised Tray Kits 3 & 6 (40/50mm height x 1850mm length)
Installation Kit Included
The Abacus Elements Concepts 3 & 6 are designed for two principal applications where a distinctive shower tray i.e. 50mm off the ground is required. Some customers prefer a small step between the shower area and the rest of the bathroom floor.
Secondly if a customers wishes to achieve a level floor system on a screeded floor this can be a achieved by sitting the 40mm tray within the screed. You must have sufficient clearance in the floor to achieve this.

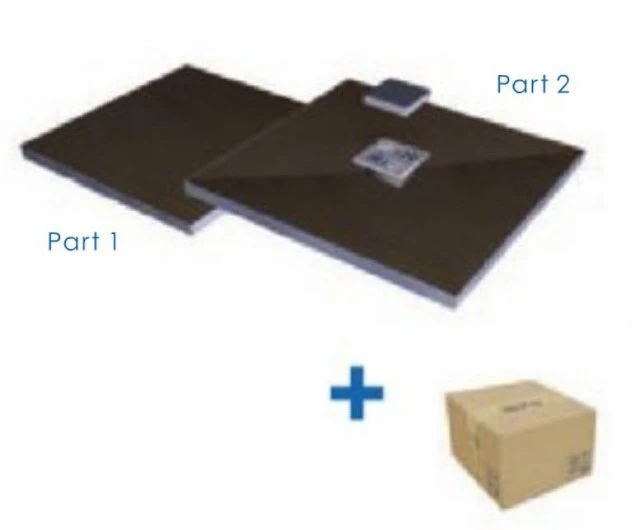

Consisting of:

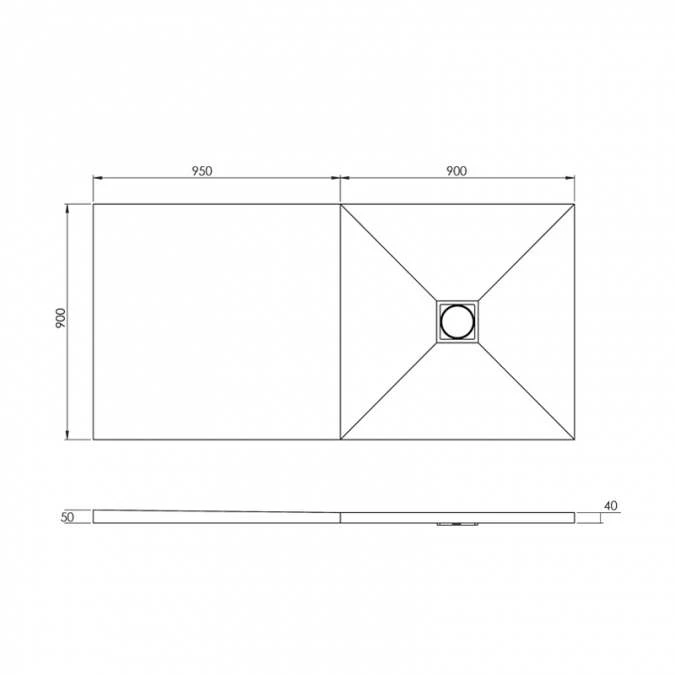

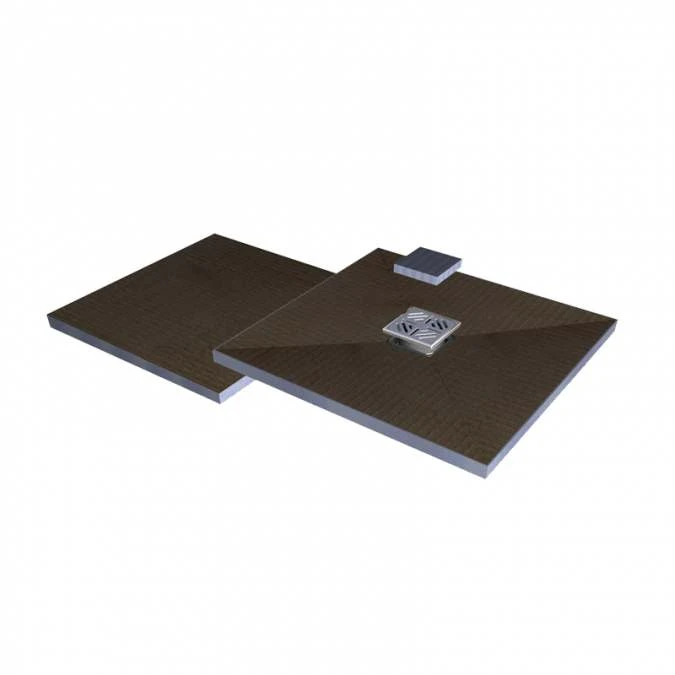

- Shower Tray – 900x900mm
- Center Drain
- Extension Board with 10mm Fall – 950x900mm
Constructed from a high quality structural hard foam, the concept 3 Shower Tray is humidity resistant and has a special mortar coating with a glassfibre reinforcement. It is light, strong and an ideal substrate to tile on to.
NB:
1) The trays can be reduced in length & width by cutting with a hand saw, however we do not recommend cutting more than 80mm of each side of the tray when reducing the width
2) Tray lengths can be extended by purchasing additional element boards.
Installation kit Includes
- Flexible Waterproof Tape Adhesive
- Wood Floor Primer
- Horizontal Shower Waste
- Board Fixing Adhesive
- Sealing & Mounting Adhesive
- Waterproof Joint Sealing Tape
- Waterproof Internal Corners
- Tile Guide
- Paint Brush
- Notched Trowel
- Protective Gloves
