Wedi Fundo Primo Wetroom Tray With Central Drain – 1800 x 900mm | Premium Wet Room Solution

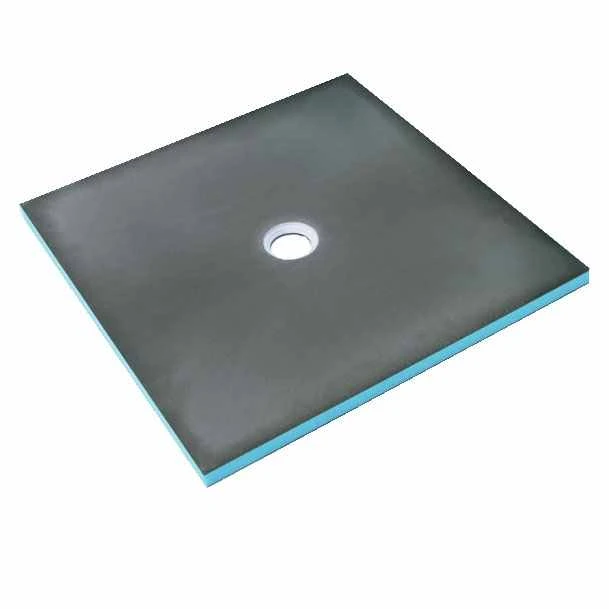

wedi Fundo Primo Tileable Shower Tray 1800 x 900mm – Central Drain

The Fundo Primo tileable shower tray is 100% waterproof and simple and safe to work with, with large load bearing properties this product gives confidence when tiling your wetroom that it will support everything you can throw at it.

wedi Primo Shower trays have a blue core made from extruded polystyrene rigid foam which is free from HCFC’s, due to the materials used this range of products is the ideal base for tileable shower trays being light, stable and heat insulating, the cement coated surface forms an incredibly strong base for the adhesive to bond to thanks to the integrated fabric.

wedi Fundo Primo shower bases are versatile and can be built up from the ground to incorporate tilebacker boards and tileable shelves also allowing a totally customisable wetroom.

wedi Primo Wetroom Tray Technical details

• Size: 1800mm x 900mm
• 100% Waterproof.
• 40mm Thickness (Max Thickness)
• Wheelchair load bearing from minimum tile size : 50 x 50mm.
• Surface slope from outer edge of Fundo floor element to outer edge of drain opening: 18mm.
• wedi Waste/Grate is required for this product.

Choice of Wastes (Required):

• Vertical Square Waste with Grate – 077000033
• Vertical Round Waste with Grate – 077000035

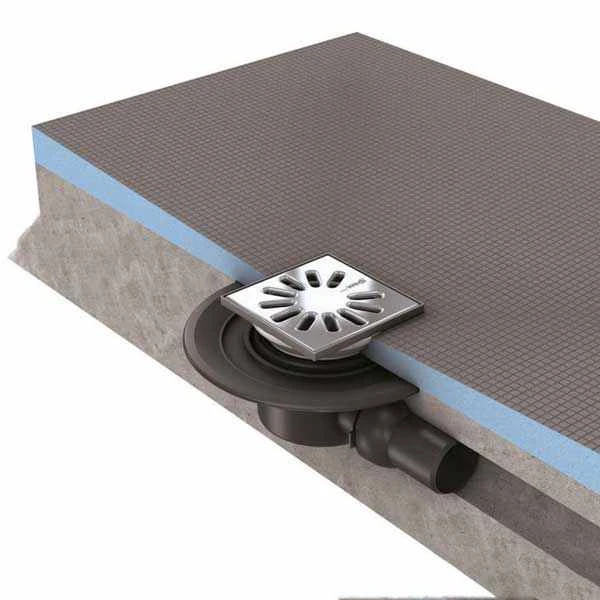

• Horizontal Square Waste with Grate  – 077000034
• Horizontal Round Waste with Grate – 077000036

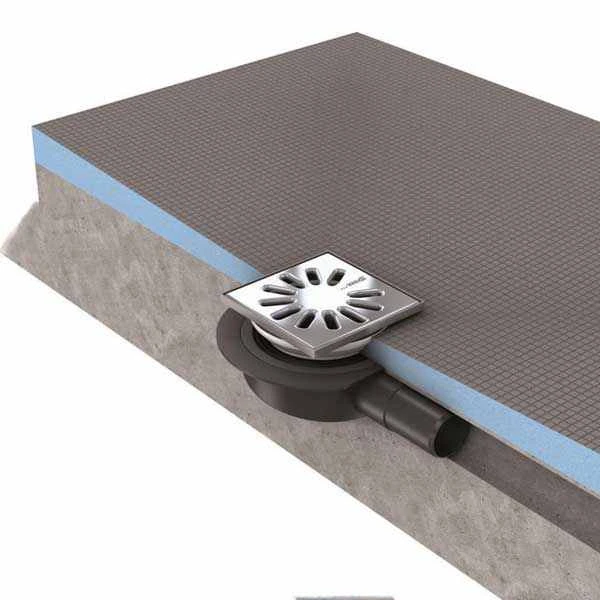

• Mini Max Extra Flat Waste with Grate – 077000015

Optional Extras:

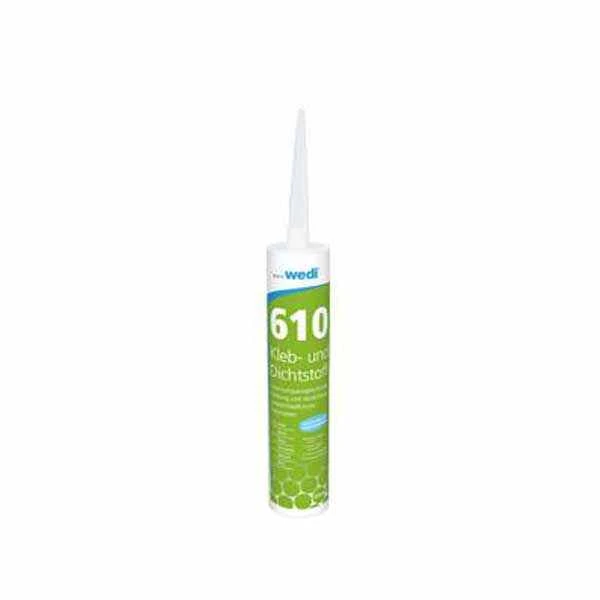

• wedi 610 Adhesive and Sealant Material 310ml – Code 076902

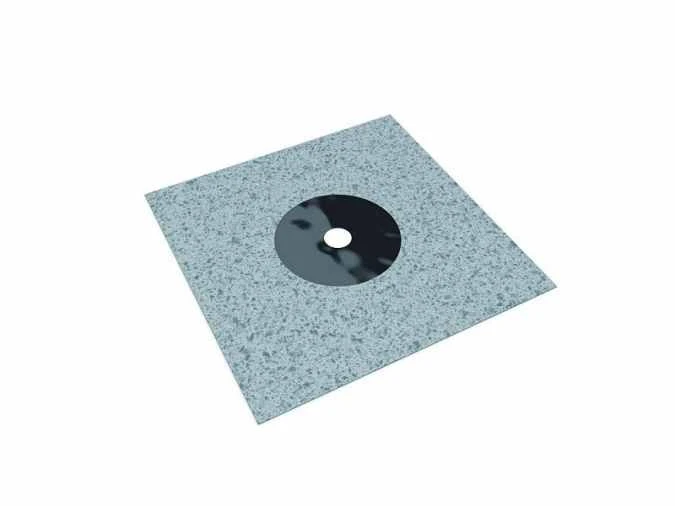

• Sealing Gaiter ( To help seal around pipework running through tiles) – Code 095120050

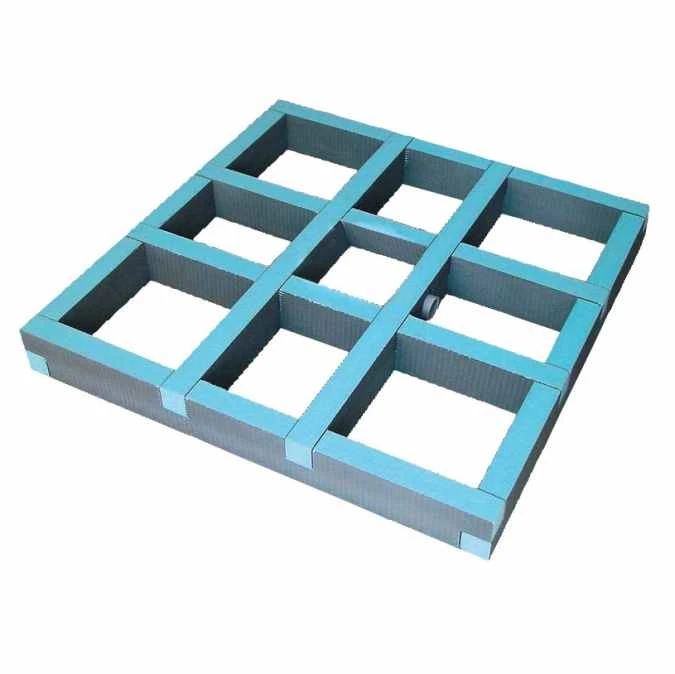

• Fundo Drain Substructure for Primo shower base (removes the need to cement in the waste) – Code 07372090

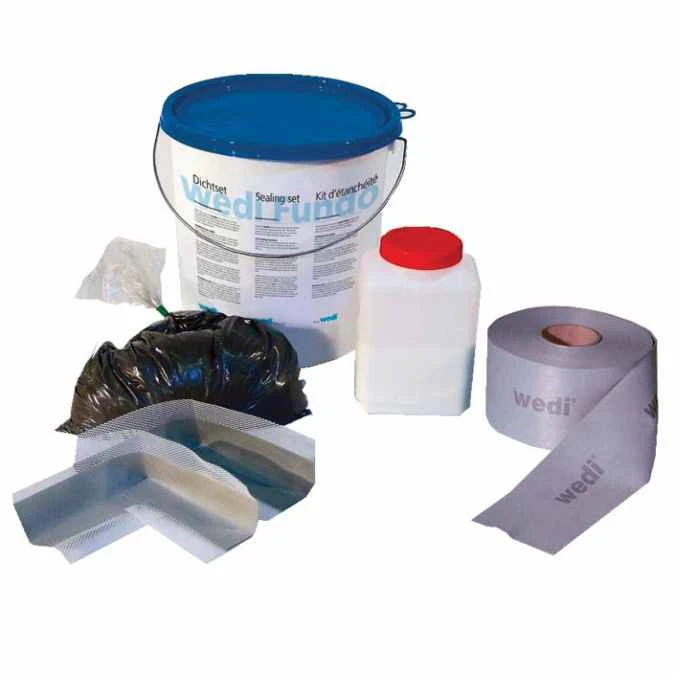

• Fundo Installation Set (sufficient for installing Fundo Shower Base and Partition) – Code FSS

Sealing set includes: 1 x Powder Component (2.5kg,) 1 x Liquid Component (0.8L,) 1 x Waterproof Sealing Tape, 2 Internal Corners

For more information and installation instructions of Wedis tileable wetroom shower trays including technical detail please click here to be directed to the manufactures website.
